Vein finder HFM-V600

A vein finder is a medical device designed to help healthcare professionals locate veins more easily for procedures such as venipuncture (drawing blood), IV insertions, and other venous access tasks. These devices are especially useful for patients with difficult-to-locate veins, such as those who are obese, elderly, pediatric, or have conditions that affect their veins.

Non-invasive and fast, providing clear imaging that surpasses competitors by a significant margin. Outstanding appearance, exceptional quality, and meticulous craftsmanship are evident in every detail.

Image performance optimization fast imaging

Help doctors and nurses easily find veins in various patients, such as obese, hairy or dark-skinned people, greatly improving the success rate of puncture and reducing the cost and pain of puncture.

post-image

12 Colors Available: Suitable for different skin colors or environments.

post-image

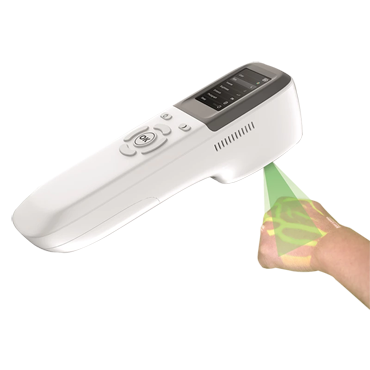

6 Levels of brightness: Image performance optimization and high-precision adjustable brightness

post-image

3 Sizes Available: Suitable for adults, children and newborns.

post-image

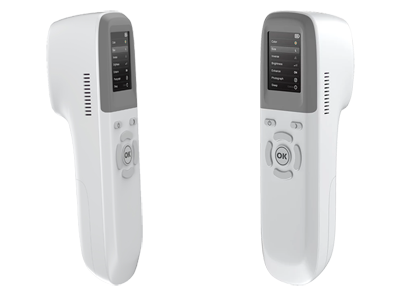

Sleep function, quick startup and power saving

post-image

2 Modes : Enhance mode used for viewing finer image detail of smaller and deeper veins especially for the pediatrics, fat patients and edema patients.

post-image

Inverse: Inverts the dark and light projection areas such that veins can be depicted by either light or dark.

post-image

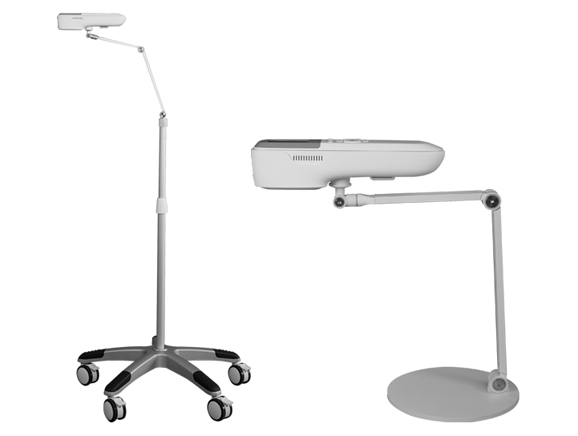

Optional accessories: Portable vein finding device, it can accurately and timely project blood vessel images to the skin surface, ergonomically designed!

post-image

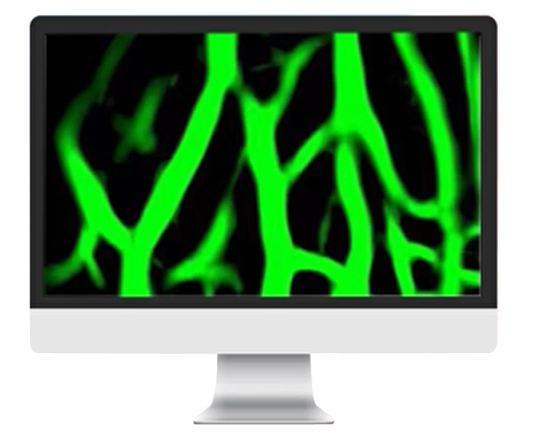

Storing Vein Image: To view the stored venous pictures for medical staff to track and analyze pathology.

post-image

Technical Parameter

Light:The human body's harmless infrared light
Distance:15-25cm
Infrared Wave:760-940nm
Noise:≤30dB
Weight:450g
Product size:24cm (L)*6cm(W)*6.5cm(H)
batteries:Samsung 4800mAh lithium battery
Power:DC 5V 4.5A
The adapter:100V-240V,AC 50Hz-60Hz; 5V 4.5A
LCD screen:2.4 inch
Image:3D pseudo-color and Al algorithm
Accuracy of blood vessel position:±0.3mm
Infrared detection depth:0-10mm
Language1.Chinese 2. English 3. French 4. Polish5.Vietnamese 6. Russian 7. Italian 8. Korean9.German 10. Spanish
American TI projection technology
